DEXI 3 assembled, three-quarter view on a studio sweep

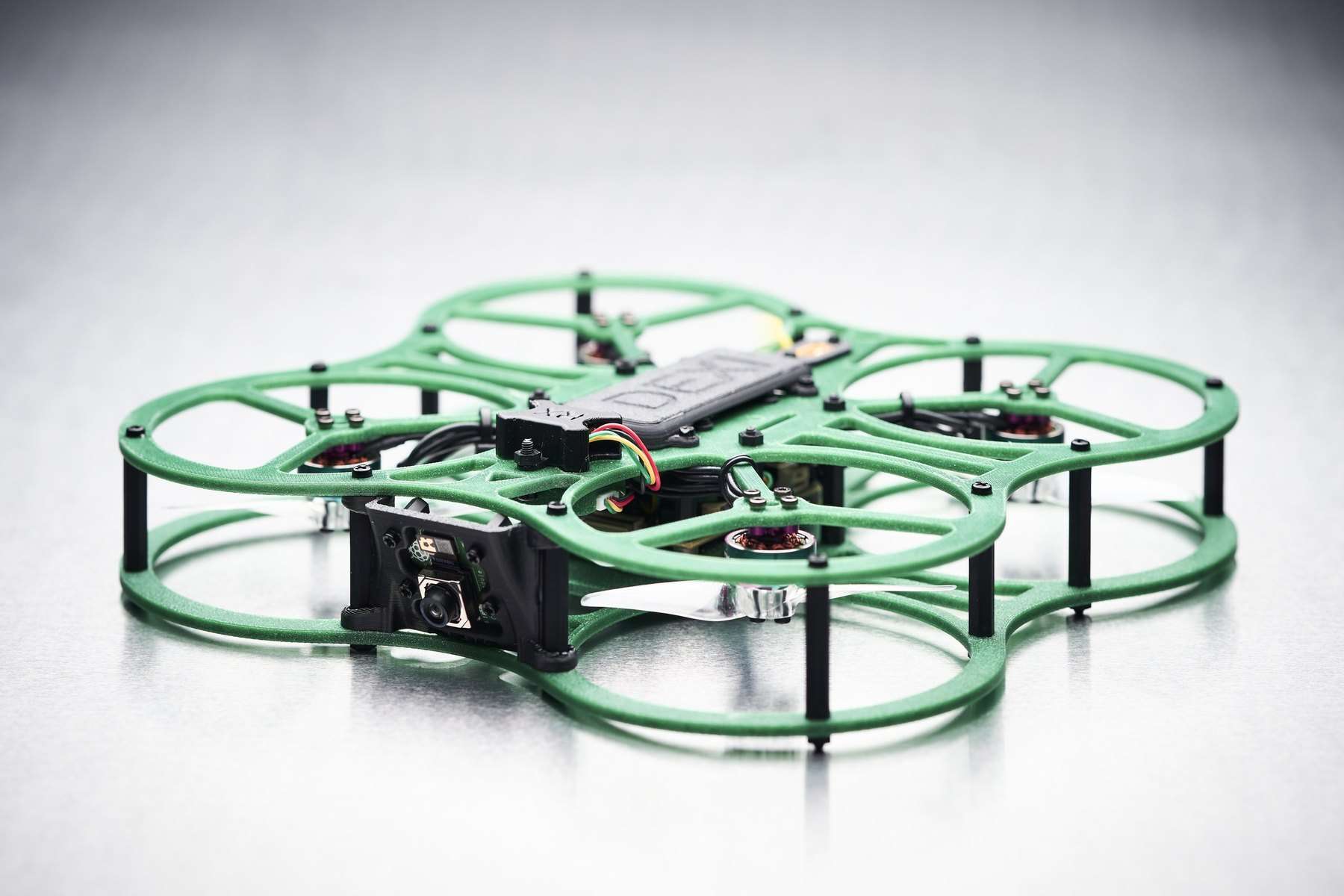

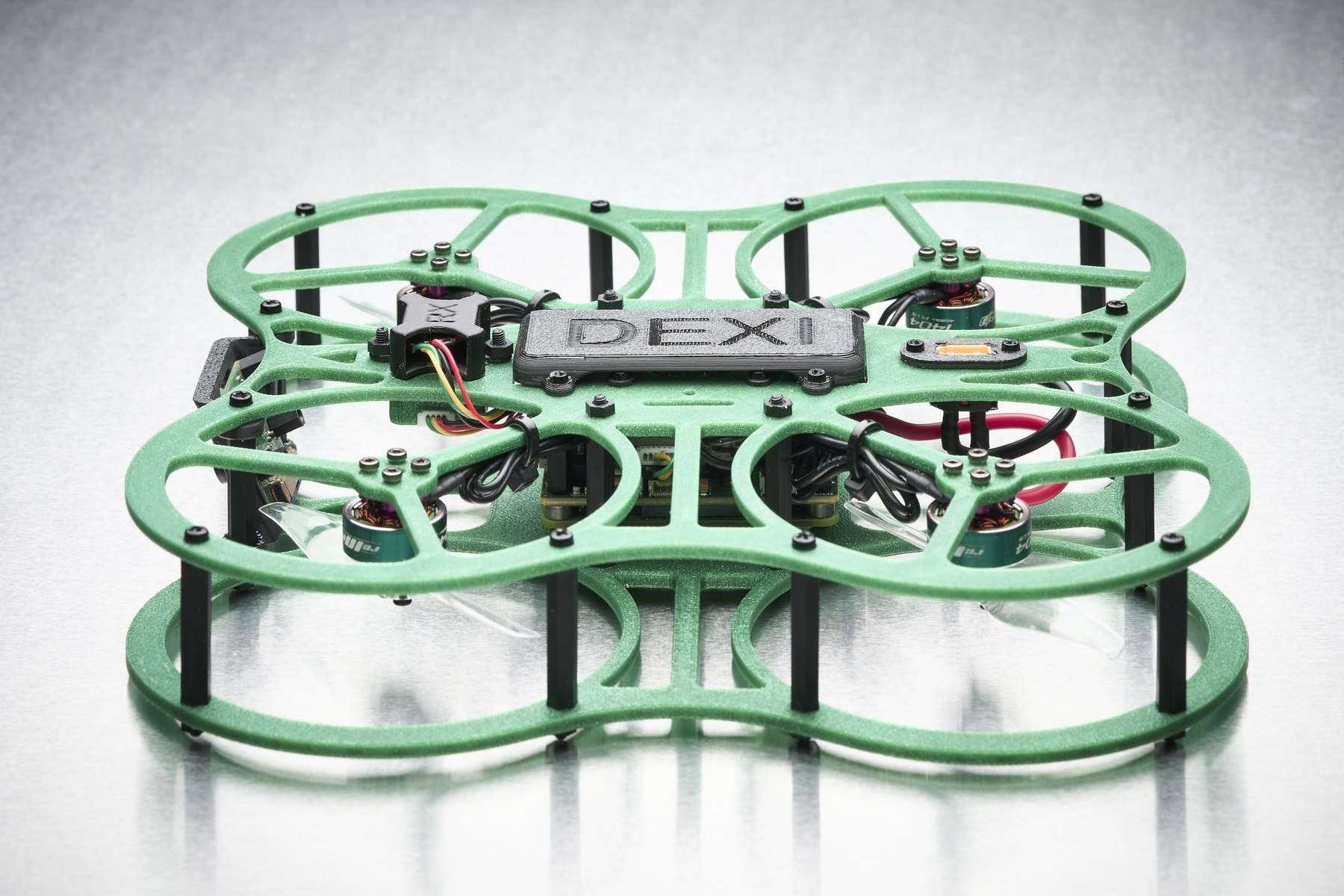

DEXI 3 side view showing the ducted carbon frame and battery plate

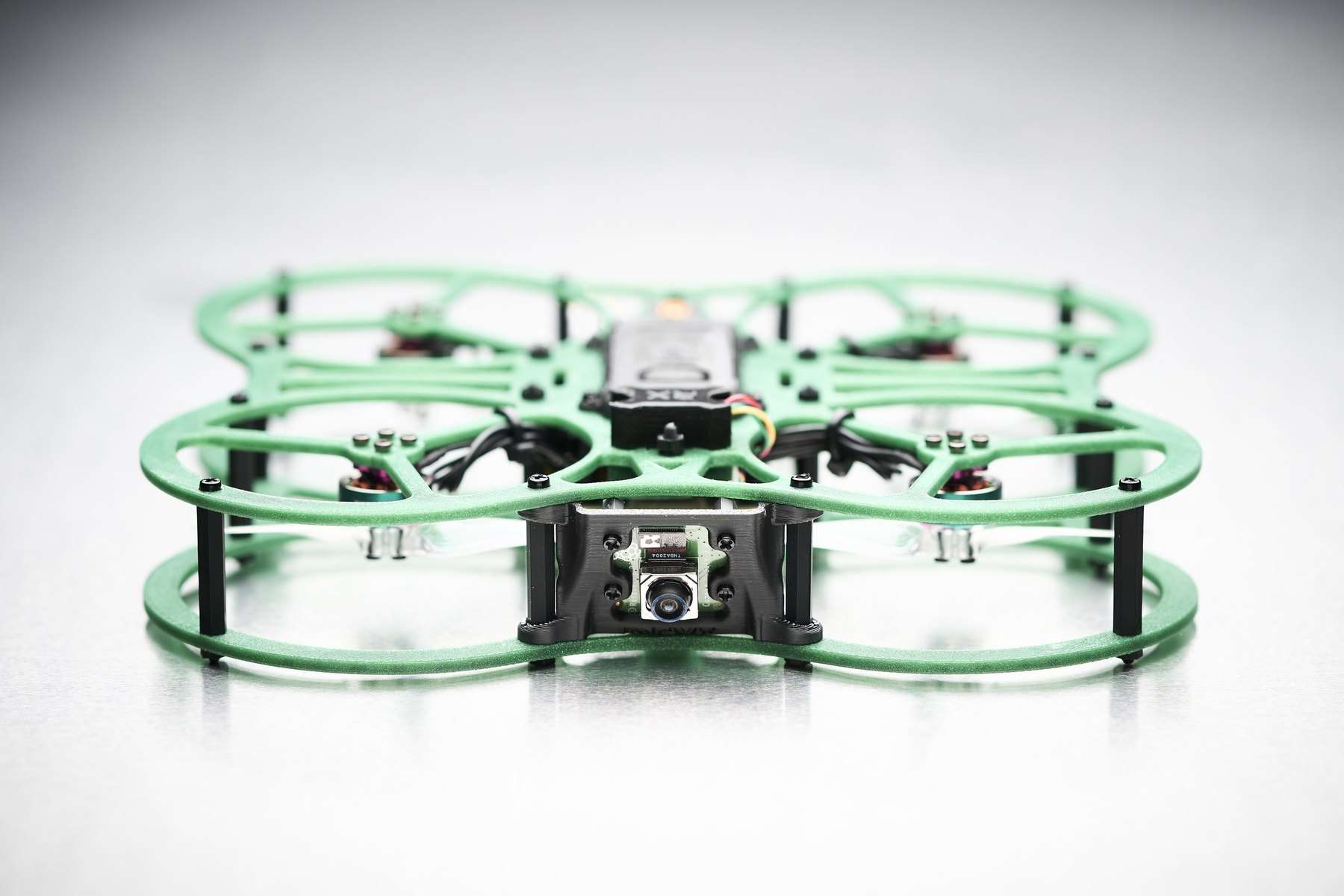

DEXI 3 front view with the forward camera module centred

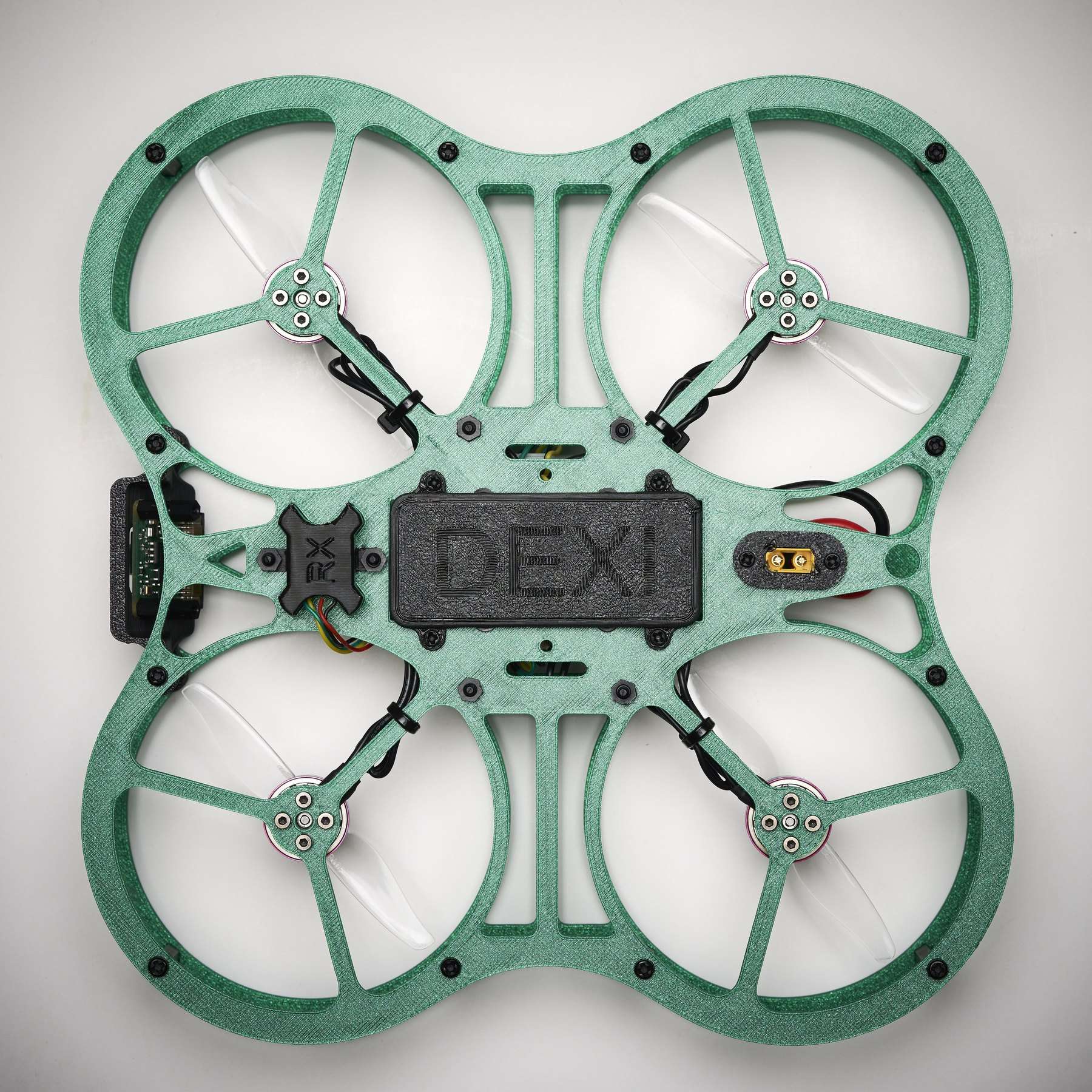

DEXI 3 from above: four motors, battery plate and XT30 power lead

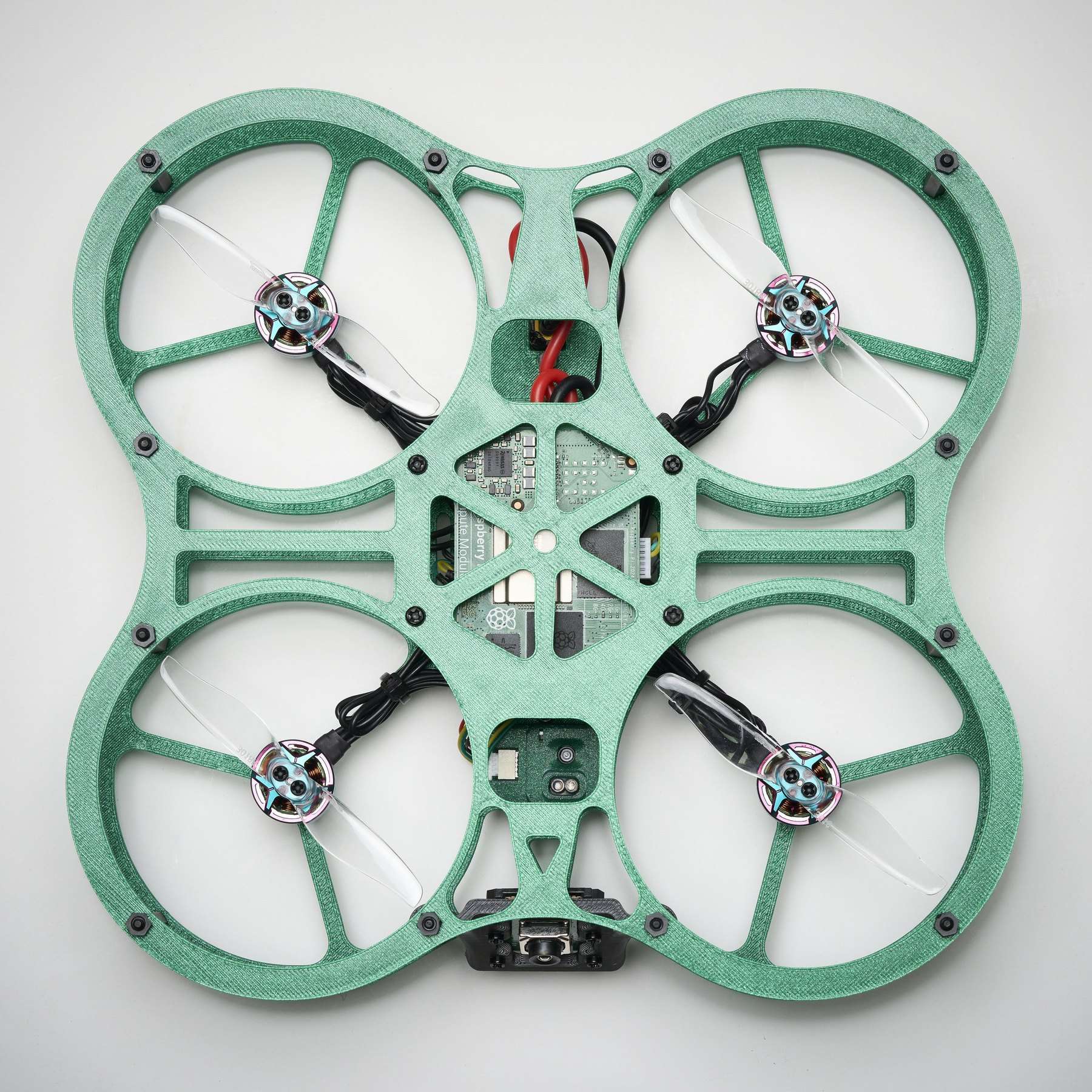

Underside of the DEXI 3 showing the downward optical flow and range sensors
DEXI 3 with the centre cover off, showing the Raspberry Pi compute module

$799.00

Meet DEXI 3 — Drone for Exploration & Innovation. Built for curious minds at every level, DEXI 3 is a fully autonomous research and development drone designed with hands-on STEM learning at its core. Whether you’re a middle or high school student taking your first flight, a college researcher pushing the boundaries of autonomous systems, or a developer working directly with PX4, DEXI 3 grows with you.

SKU: DB-DEXI-3-KIT Category: Tags: ,

Description

Meet DEXI 3 — Drone for Exploration & Innovation. Built for curious minds at every level, DEXI 3 is a fully autonomous research and development drone designed with hands-on STEM learning at its core. Whether you’re a middle or high school student taking your first flight, a college researcher pushing the boundaries of autonomous systems, or a developer working directly with PX4, DEXI 3 grows with you.

Our DEXI 3 kit allows you to assemble the drone and includes a transmitter, receiver, battery, and charger.

View Limited Warranty

Additional information

Ready to Fly (RTF)

Yes, No

BackgroundImage

Programming Autonomous Flight

DEXI 3 is a fully programmable, customizable, and modular drone that students will build from the ground up. DEXI introduces a groundbreaking all-in-one flight controller running PX4 Autopilot that integrates optical flow sensing for incredibly accurate positioning while flying indoors or in GPS-denied areas. Complete with onboard computing capabilities, a PI camera, and access to GPIO, the possibilities are endless.

  • Icon
    Block-Coding

    DroneBlocks Block Coding ... Coming Soon

  • Icon
    Python

    Python, being a versatile programming language, is perfect for interacting with PX4 due to its readability and wide support for libraries.

  • Icon
    ROS

    The integration of ROS with PX4 provides a powerful platform for developing sophisticated autonomous drone applications.

  • Icon
    PX4

    PX4 is an open-source flight control software platform for drones and other unmanned vehicles. It stands out in the realm of drone technology for its robust architecture and versatile capabilities.

BackgroundImage

Programming Autonomous Flight

Learning real-world coding skills through programming drones combines practical experience in both software development and robotics. Using tools like DroneBlocks, Python, and the PX4 flight stack, alongside advanced sensor technologies like optical flow, provides a comprehensive, hands-on approach to drone programming.

  • Icon
    Block-Coding

    DroneBlocks Block Coding ... Coming Soon

  • Icon
    Python

    Python, being a versatile programming language, is perfect for interacting with PX4 due to its readability and wide support for libraries.

  • Icon
    ROS

    The integration of ROS with PX4 provides a powerful platform for developing sophisticated autonomous drone applications.

  • Icon
    PX4

    PX4 is an open-source flight control software platform for drones and other unmanned vehicles. It stands out in the realm of drone technology for its robust architecture and versatile capabilities.

DroneBlocks DEXI 3

A Revolutionary STEM Drone Kit!

Frame: 3″ Custom Drone Frame
Motors: RCINPOWER GTS V3, 4680KV
Propellers: Gemfan 3018 Tri-Blade
Flight Controller / ESC: DroneBlocks PX4 FC with Integrated ESC
Flow & Distance Sensor: Optical Flow and TOF Distance Sensor
Compute Module: Raspberry Pi CM5
Camera: Raspberry Pi Camera Module 3
Carrier Board: DroneBlocks Pi Carrier Board
Battery: 3000mAh 3S 11.1V, XT30
Tx/Rx: RadioMaster Pocket ELRS + ELRS Nano Receiver
Storage: 128GB Micro SD
LED Strip: Included
Charger: Included
Support Icon

Support

Questions? Challenges? We're here, always ready to guide. Because when educators succeed, so do students.

Professional Development

DroneBlocks provides professional development opportunities to ensure educators are well-equipped to deliver our STEM curriculum.

Professional Development

Ongoing Support

You're never navigating solo when you're with DroneBlocks. Our extensive support resources and channels are your co-pilot, ensuring a smooth learning journey.

Ongoing Support
